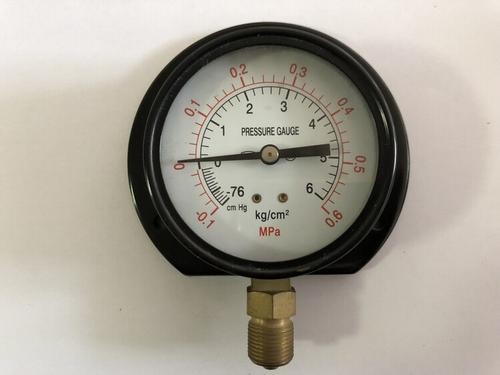

YC-60/100/150t Structure principle: the Marine pressure gauge, in addition to the general pressure gauge performance, but also has good shock resistance, especially suitable for the mechanical vibration of Marine conditions, the measurement of copper alloy corrosion, and no crystallization, no precipitation of gas, liquid and other media pressure.
Application: it is especially suitable for measuring the pressure of gas, liquid and other media which can not corrode copper alloy and do not crystallize or precipitate.
YC Marine pressure gauge parameters
| Nominal diameter | model | Precision grade | Measuring range Mpa | Connection thread | Installation dimensions |
| Ø 60 | YC-60T | 2.5 |
0.1, 0.16, 0.25, 0.4, 0.6, 1, 1.6, 2.5, 4, 6, 10, 16, 25, 40, 60-0.10 ~ 0, 0.1 ~ 0.06, and 0.1 ~ 0.15, and 0.1 ~ 0.3, 0.1 ~ 0.5, 0.1 ~ 0.9, and 0.1 ~ 1.5, and 0.1 ~ 2.4 |
M14 x 1.5 | - |
| YC60Z | M10 x 1 |
Ø 172 x 120 oc, 3 - Ø 5 |
|||
| YC60ZT | |||||
| Ø 100 | YC-100T | 1.5 | M20 x 1.5 |
Ø 118 x 120 oc, 3 - Ø 6 |
|
| YC100Z | - | ||||
| YC100ZT |
Ø 118 x 120 oc, 3 - Ø 6 |
||||
| Ø 150 | YC-150T | 1.5 | M20 x 1.5 |
Ø 165 x 120 oc 3 - Ø 6 |
|
| YC150Z | - | ||||
| YC150ZT |
- |
