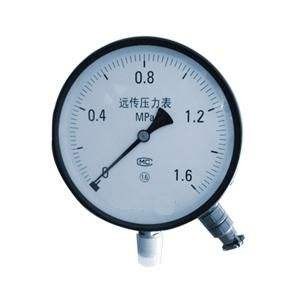

YTZ-150 type resistance pressure gauge and YTZ-150B type stainless steel resistance pressure gauge are suitable for measuring the pressure of copper and copper alloys, or stainless steel alloys do not corrode the gas, liquid pressure. The resistance remote pressure gauge transmits the measured value to the secondary instrument far away from the measuring point through a positioner sensor installed inside the instrument for centralized detection and remote control. In addition, the resistance remote pressure gauge can indicate the pressure locally at the same time for on-site process inspection.

Resistance remote pressure gauge can be connected with diaphragm isolator (diaphragm body), made of diaphragm type resistance remote pressure gauge, used for measuring corrosive strong, large viscosity, easy to crystallize medium pressure.

Main technical specifications of resistance remote pressure gauge

1. Basic error: plus or minus 1.6.

2, : measurement range: (Mpa)

(Special specifications, please specify when ordering)

0-0.16 0-0.25 0 0-0.4-0.6

0.1 0 0-1.6-2.5 0 to 4

0-6 0-10 0-16 0-25 0-40

- 0.1-0.06-0.1-0.15-0.1-0.3-0.1-0.5

- 0.1-0.9-0.1-1.5-0.1-2.4

3, working conditions (1) ambient temperature: -40-60℃

(2) Working pressure: Static load:

Use up to 3/4 of the measurement limit

Alternating load: used to 2/3 of the upper limit of measurement

Short-term pressure: used to measure the upper limit

(3) Relative temperature: < 85%

4. Technical data of slip-line resistance transmitter: starting resistance: 3-20 ω

Full resistance: 340-400 ω

Applied voltage of terminal <6V

5, instrument diameter: φ 150mm

6. Connection size: M20x1.5
