• Product features
1) Flat cable with cold resistance, soft, wear resistance, oil resistance and other characteristics.
2) Smaller bending radius than circular cable, saving installation space.
3) Multiple cables can be overlapped and bundled.
4) High flexibility -- multi-strand fine twisted oxygen-free copper wire stranded wire conductor to ensure the softness and flexibility of the wire core.
6) Bending resistance -- optimized cable pitch, special structure design, better raw materials, to ensure long-term work in high frequency bending occasions is not easy to break the core.
7) tensile -- two reinforced galvanized steel wire rope bearing force.
7) Wear resistance, oil resistance, anti-aging -- the use of better mixed jacket materials.
8) Waterproof, anti-radiation, anti-corrosion -- imported TPU special sheath material, seawater and other harsh environment

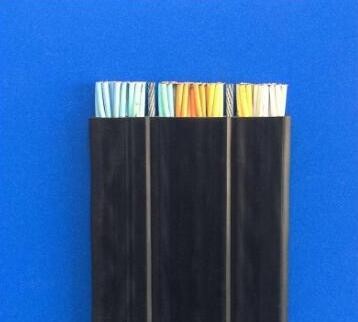

Cable structure
Conductor: multi-strand superfine fine twisted oxygen-free copper wire, in accordance with VDE0295CLASS 5 standard
Insulation: special mixed PVC insulation
Color: color, according to GB5023.6(yellow, white, orange, light green, pink) number (no yellow green grounding wire)
Inner lining: None.
Reinforcer: high strength galvanized aviation steel wire (optional);
Jacket: cold PVC special jacket gray or black
Rated voltage: 300/500V:
Test voltage: 2500V
Static bending test: 0.3m < 0.6m:
Vertical combustion test: through GB/ T18380.1-2001, IEC60332-1:1993 test:
Product standard: GB5023.6, lEC60227 -- 6, EN5021 4.
Guide to Use:
In normal use, the high temperature of conductor Z.ui is 70 uc_
The usage is as follows
In a font arrangement
1, free use length is greater than 35m;
2, the running speed is greater than 1.6m/s;
It should be considered to add load bearing elements in the cable, which are generally galvanized soft wire rope or fiber rope such as Arlene yarn
Plums and flowers are twisted in arrangement
1, free hanging length is greater than 80m;
2, operating speed of 4.0m/s~ 10.0m /s;
Consideration should be given to adding load-bearing elements in the cable, which are generally galvanized flexible wire ropes.
