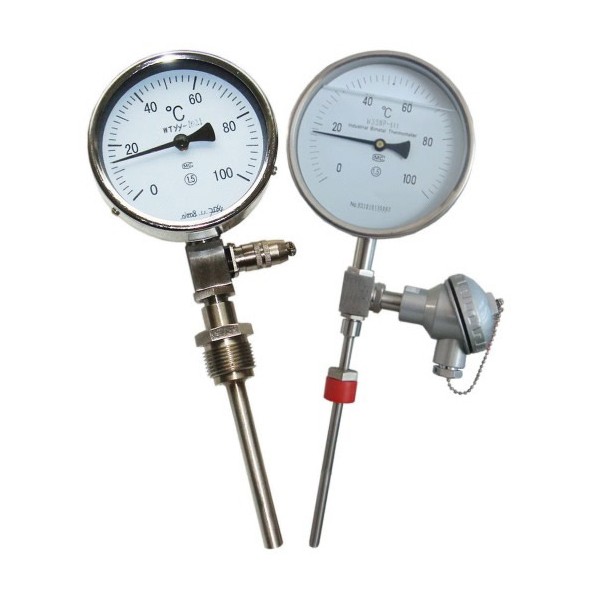

WTYY-1021 remote bimetal thermometer can not only meet the needs of on-site temperature measurement, but also meet the needs of long-distance transmission. The remote bimetal thermometer can directly measure the temperature of liquid, vapor and gas medium and solid surface in the range of -40 ~ +600℃ in various production processes.
Performance:
1, with temperature probe small, high sensitivity, linear scale, long life and so on.
2, with long transmission resistance signal (PT100), earthquake resistance, corrosion resistance and high power switch signal and other functions.
3, the structure is the same with the international similar products, can replace the import.
Technical parameters:
1, temperature range -40 ~ 600℃
2, ambient temperature -10 ~ 55℃
3. Relative humidity ≤ 95%
4. Accuracy level 1.5
5. Time constant ≤60S
6, the probe pressure ≤6Mpa
7, probe diameter :φ8-10mm, movable external thread :M27*2
8, thermal resistance PT100 (single, double output) or 4-20mA current output
9. Protection grade: IP55
